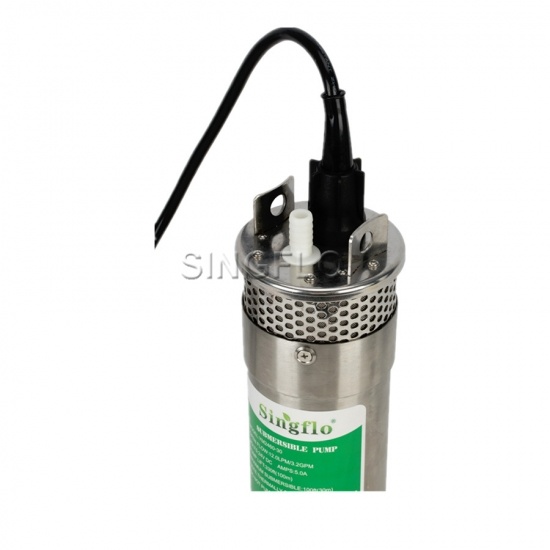

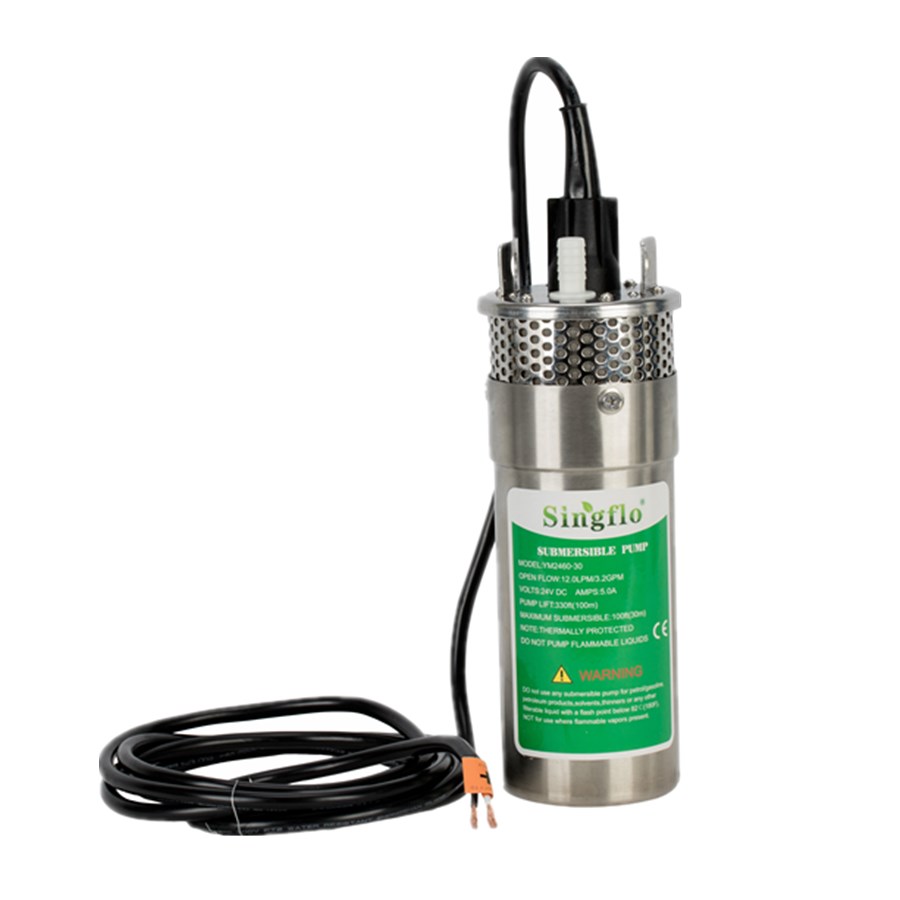

Factory YM2460-30 4'' 12LPM Submersible deep well solar powered bore water pumps Stainless Steel Body
  • Product Origin:

  • Brand:

  • Item No.:

  • Shipping Port:

    Xiamen,NingBo,Shanghai,Shenzhen,QingDao etc.
  • Lead Time:

    12 days
  • Payment:

    T/T, Payment, Western union, Money gram,Paypa
  • Product Details

Wholesale solar water Pump:

*Strong Construction, yet lightweight (2.7kgs,6 lbs)

*Corrosion-proof housing with stainless-steel fasteners

*Dry Running capability without pump damage

*Internal Bypass Feature for pump protection

*Long-life,24VDC Operation

*Easily repaired in the field

*State of the art solid diaphragm

** New Product of Stainless steel body.

Power Connector:

*Unique water-tight gland connector

*Stops water wicking and prevents potential condensation

*Quick Discounnect-No splicing necessary

*Accepts a variety of jacketable cables

Pump Design Positive Displacement 3 Chamber Diaphragm Pump
Motor Permanent Magnet, Thermally Protected
Voltage 24V/12V DC Nominal
Amps: 5.0 Max/10.0 Max.
Internal Bypass 105-110PSI Max.(7.2-7.5 Bars)
Maximum Lift Maximum (100m)
Maximum Submersion Maximum (30m)
Outlet Port 1/2'' (12.7mm) Barbed Fitting for 1/2''(12.7mm) I.D.Tubing
Inlet 50 Mesh Stainless Steel screen
Materials High Strength Engineered Plastics, Stainless Steel Fasteners


details of deep well pump

*Drinking water supply

*Water supply for remote domestic usage

*Water supply for solar thermal installation

*Water supply for animals

*Game parks and game farms

*Solar micro irrigation(small family's garden.

Small rural areas or green roof system) *Irrigation of fields and greenhouses

*Pond management

Model No.:

Model No Voltage Flow Rate Amps
YM2460-30 24V 12.0LPM/3.15GPM 5.0A
YM1260-30 12V 12.0LPM/3.15GPM 10.0A

Solar pump Dimensions:
