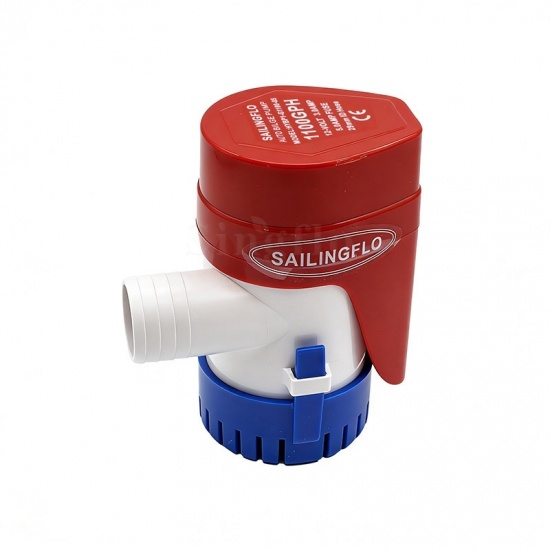

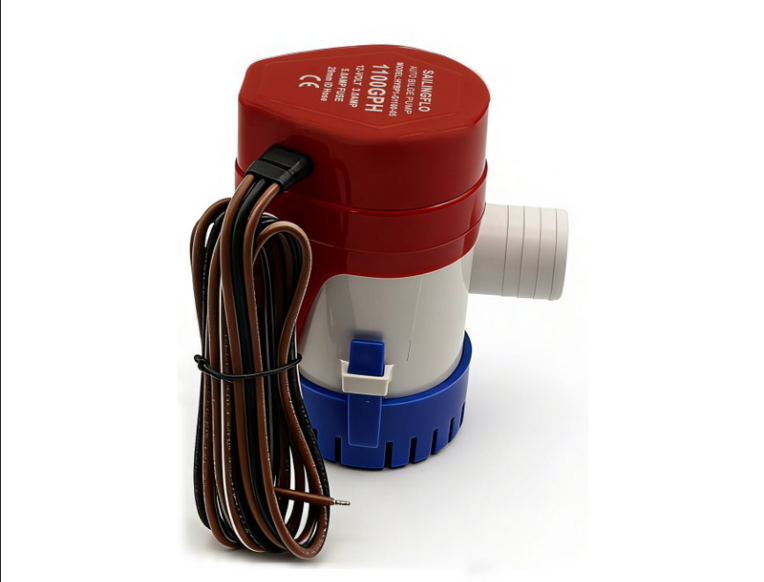

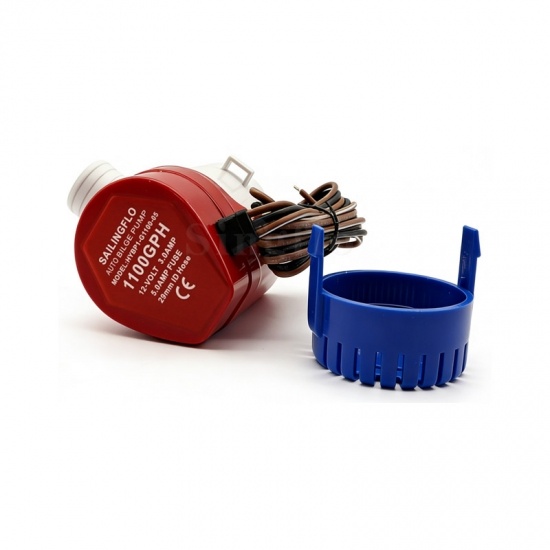

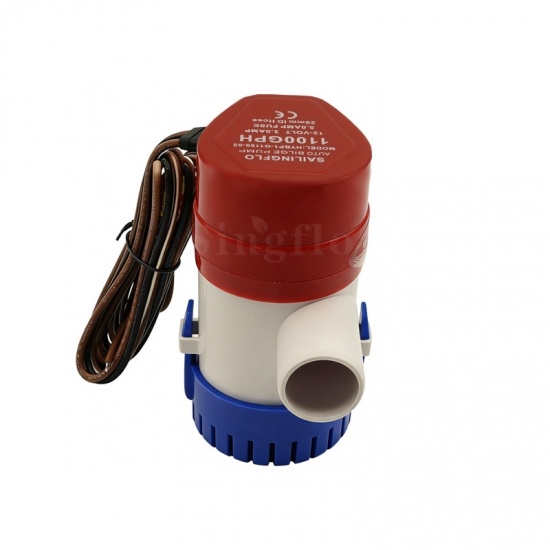

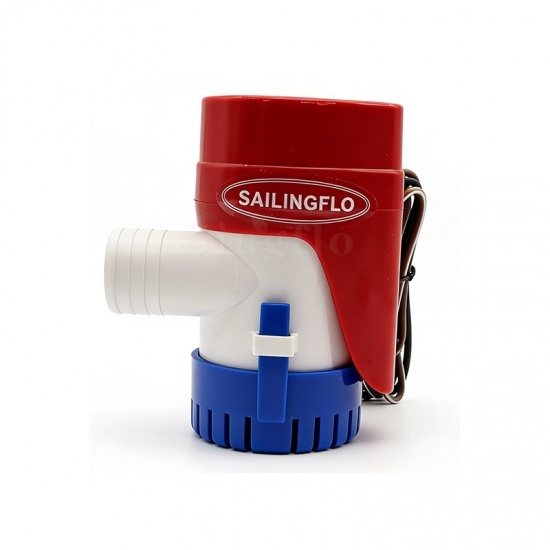

New 12v 1100GPH Electronic Automatic Bilge Pump Integrated electronic water level control system

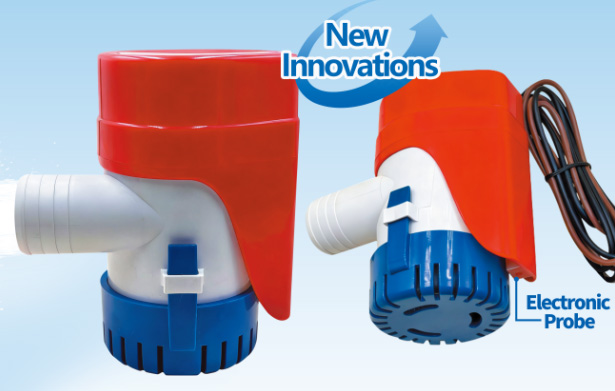

New innovation Electronic Automatic Bilge Pump Integrated electronic water level control system

Flow rate: 350GPH/500GPH/750GPH/1100GPH

Volt:12V /24V DC

【Advantages】:Equipped with built in electronic controlled sensor system for easy fully automatic operation.

It is a small automatic boat bilge pump and it is rustproof and corrosion resistant

Automatic bilge pumps, During operation the electronic probe detects the water level and starts the pump.

The removable filter makes cleaning stains and replacement very easy.

Application: Automatic Bilge Pumps For Boats 12V,1100GPH Flow Rate, Simple And Reliable Design,

Suitable For Yachts, Fishing Boats, And Waterlogged Areas In Households

Features & Benefits

· Integrated electronic water level control system

· ABS housing,with easily cleaned filter
· Anti-Airlock protection

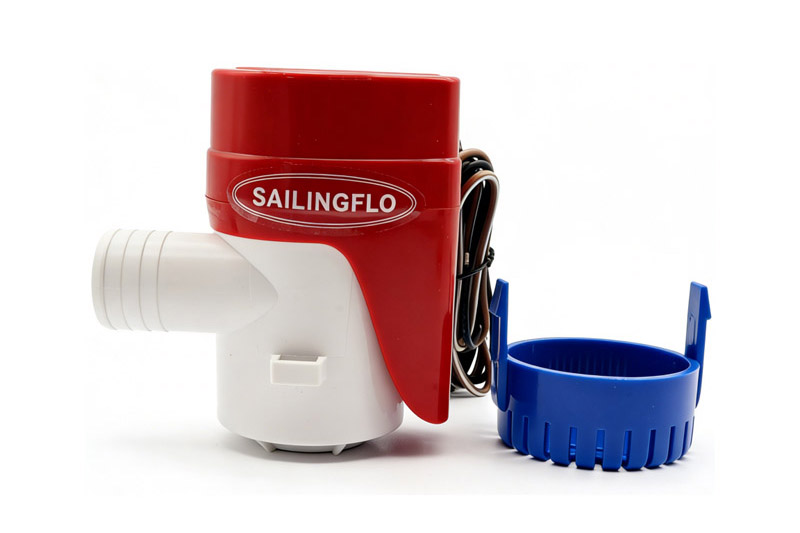

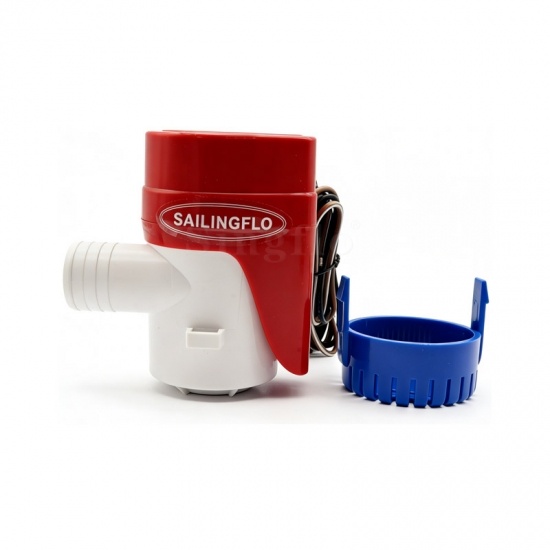

· Easy clean snap-lock strainer bases
· Compact, efficient, long life motor
· Completely submersible，Rust and corrosion protection
· Silent and vibrationless operation
· Ignition protected

Spefication:

Model	Volt	Flow Rate	Current	Head	Wire	Outlet Dia

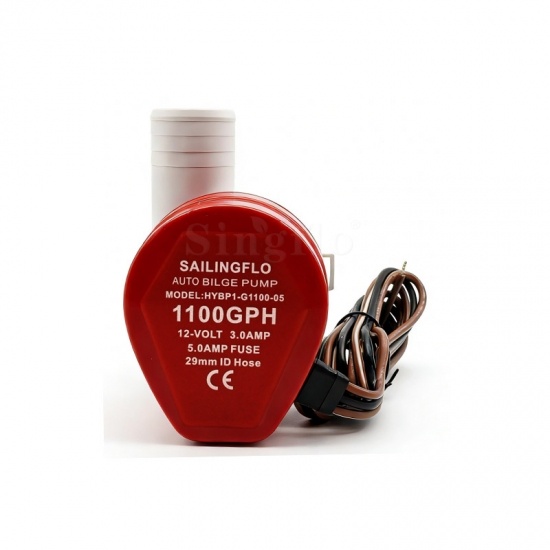

HYBP1-G1100-05	12V	1100GPH	3.0A	3.0m	100cm	29mm/1-1/8''
HYBP2-G1100-05	24V	1100GPH	1.8A	3.0m	100cm	29mm/1-1/8''
HYBP1-G350-05	12V	350GPH	1.8A	3.0m	100cm	19mm/3/4''
HYBP2-G350-05	24V	350GPH	1.0A	3.0m	100cm	19mm/3/4''
HYBP1-G500-05	12V	500GPH	2.2A	3.0m	100cm	19mm/3/4''
HYBP2-G500-05	24V	500GPH	1.2A	3.0m	100cm	19mm/3/4''
HYBP1-G750-05	12V	750GPH	2.5A	3.0m	100cm	19mm/3/4''
HYBP2-G750-05	24V	750GPH	1.2A	3.0m	100cm	19mm/3/4''

1. COMPACT DESIGN: The bilge is compact and takes up less space, makes it easier to pump water in limited space.

2. SENSITIVE RESPONSE: Bilge is equipped with an electronic switch, is more sensitive and than the traditional switch. When the water level reaches 50mm, the pump will automatically start pumping; when the water level drops to 25mm, the pump will stop working.
3. EASY TO STRAINER: This pump has a strainer with elastic buckles for and maintenance. The strainer can effectively prevent impurities in the wastewater from entering the inside of the pump, prolonging the service life of the pump and reducing the occurrence of malfunctions.
4. NO NOISE, NO VIBRATION: The bilge is manufactured with advanced technology to ensure that the pump runs with almost no noise and vibration, providing a more comfortable environment for users.
5. MULTIPLE USES: The bilge can be widely used in different places such as , swimming pools and submersibles.
