DESCRIPTION

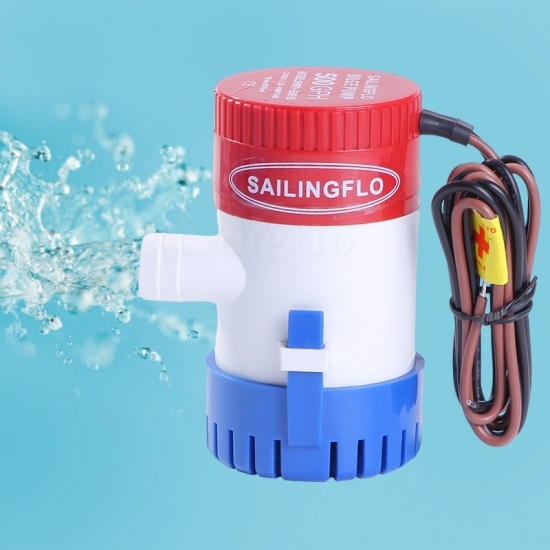

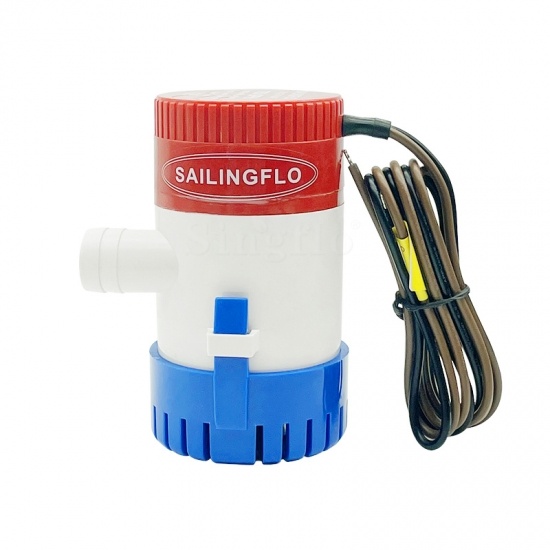

Submersible bilge pump is popular use for marine,boat,RV,camper,industrial, etc.
Heavy duty motors with stainless steel shafts and tough thermoplastic bodies.
Totally submersible and ignition protected.
To all existing safety standards.
Water cooled motors for long life, with anti airlock design and moisture tight seals.

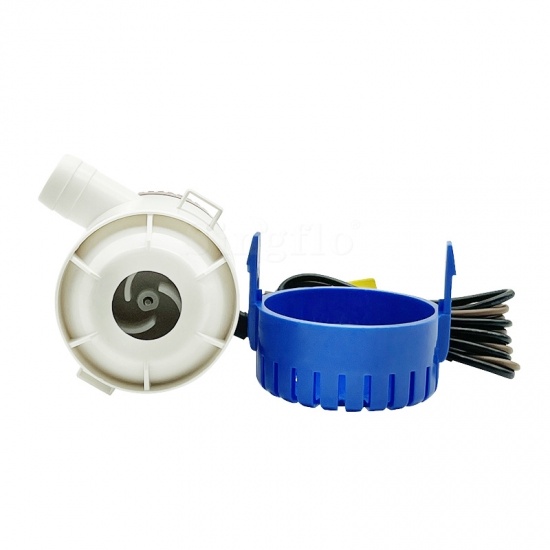

Snap-lock strainer base for easy installation and removal, and silent vibration free running
Includes comprehensive user manual with installation instructions

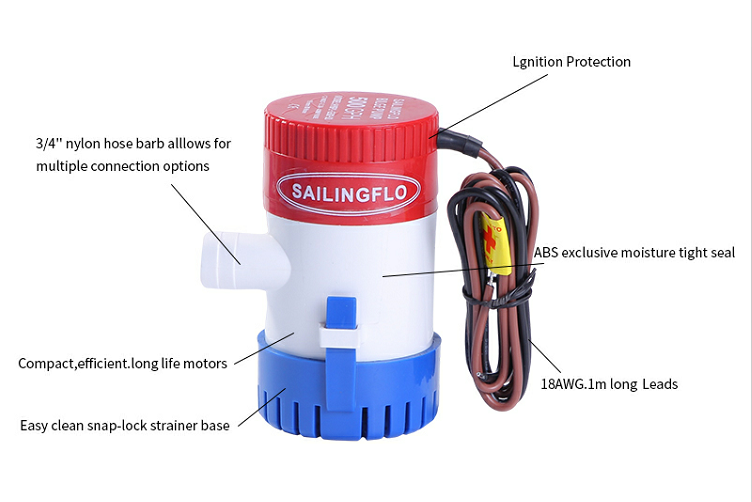

FEATURE & BENIFITS
Bilge pumps and switch are stand alone products
Compact, efficient, long life motors
Easy clean snap-lock strainer bases
Anti-Airlock protection
Exclusive moisture tight seals
Completely submersible
Marine grade blocked wiring
Silent and vibrationless operation
TECHNICAL DATA
| Model | Flow Rate | Volts | Current | Head | Wire | Outlet Dia |

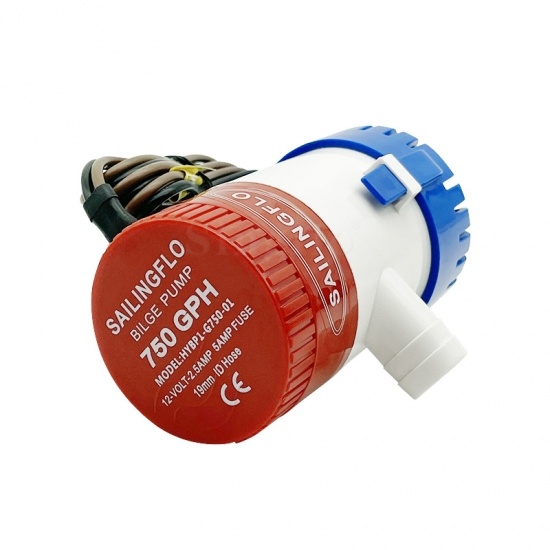

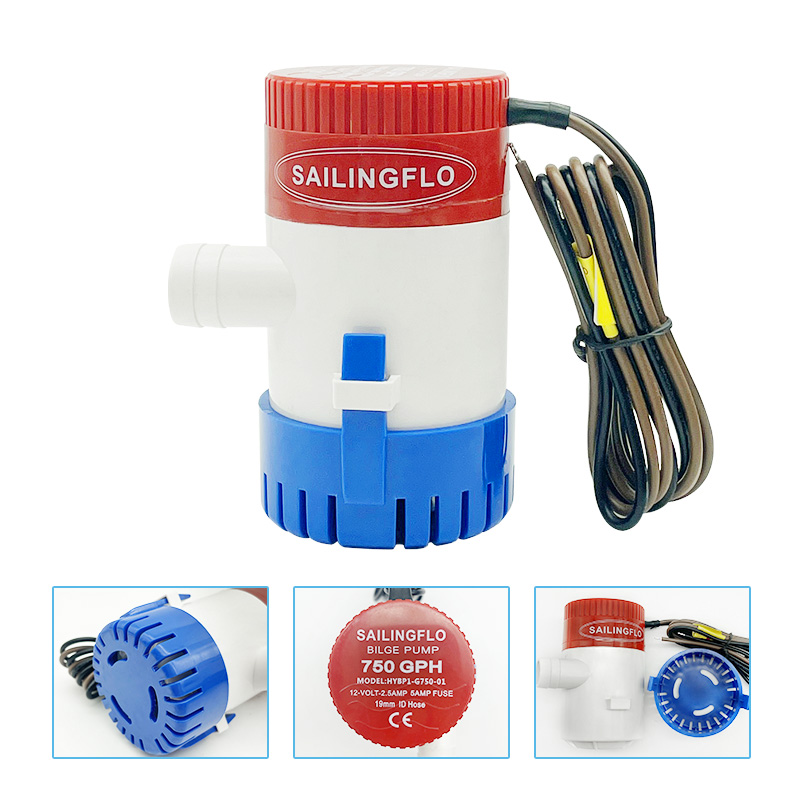

| HYBP1-G750-01 | 750GPH | 12V |
2.5A |
3M | 100CM | 19MM |
| HYBP2-G750-01 | 750GPH | 24V | 1.2A |
3M |
100CM |
19MM |
| Key | Description | Quantity | Key | Description | Quantity |
| 1 | Wire Buckle | 1 | 7 | Seal | 3 |
| 2 | Pump Cover | 1 | 8 | Motor Cover | 1 |
| 3 | Tapping Screw | 2 | 9 | Impeller | 1 |
| 4 | Motor Bracket | 1 | 10 | Pump Housing | 1 |
| 5 | Motor | 1 | 11 | Strainer | 1 |
| 6 | Seal Base | 1 |
|
|
|
