Singflo 12V 3GPM 55psi Pre-Assembled Water Pressure System Kit

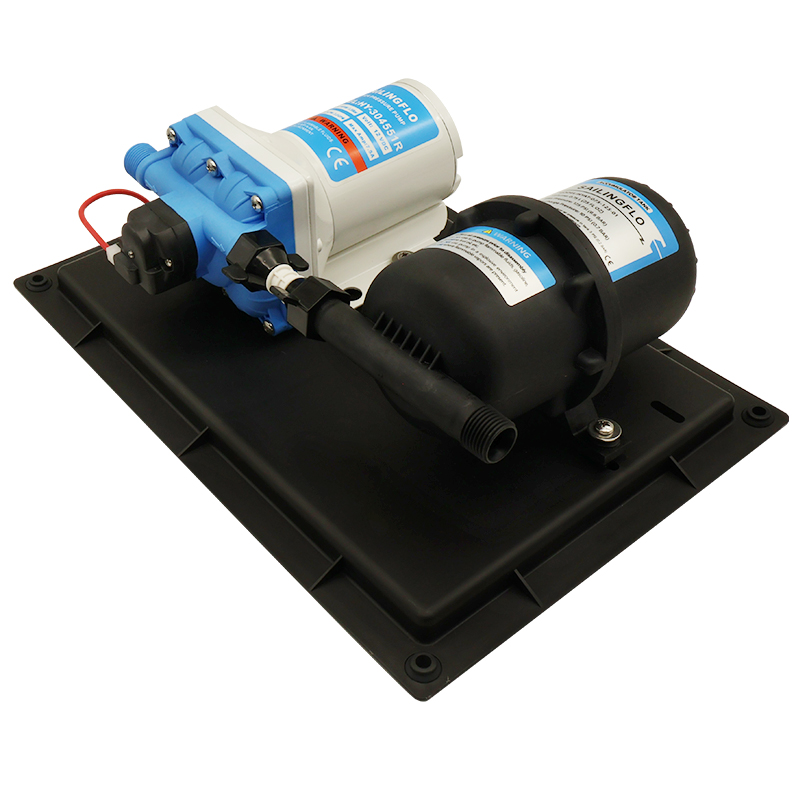

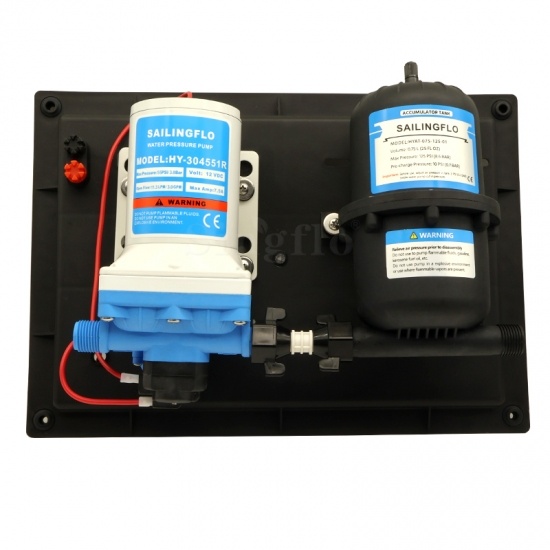

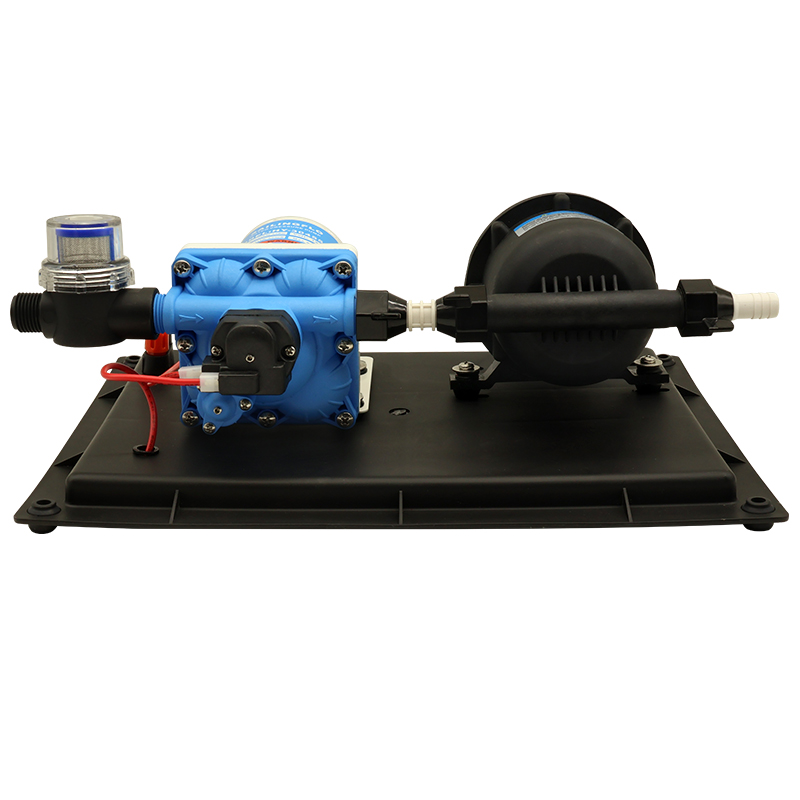

This all-in-one kit includes a high-performance pressure pump, a pre-pressurised accumulator tank, and a strainer—pre-mounted on a compact base board for quick and easy installation. With quick-connect electrical fittings, it’s ideal for both professional installers and DIY users looking to set up a reliable water pressure system with minimal effort.

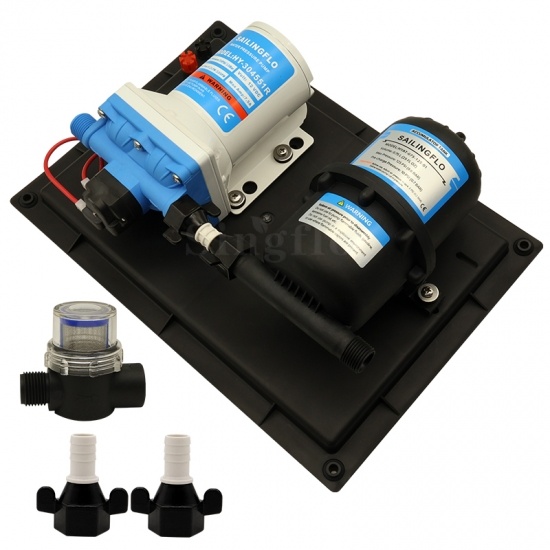

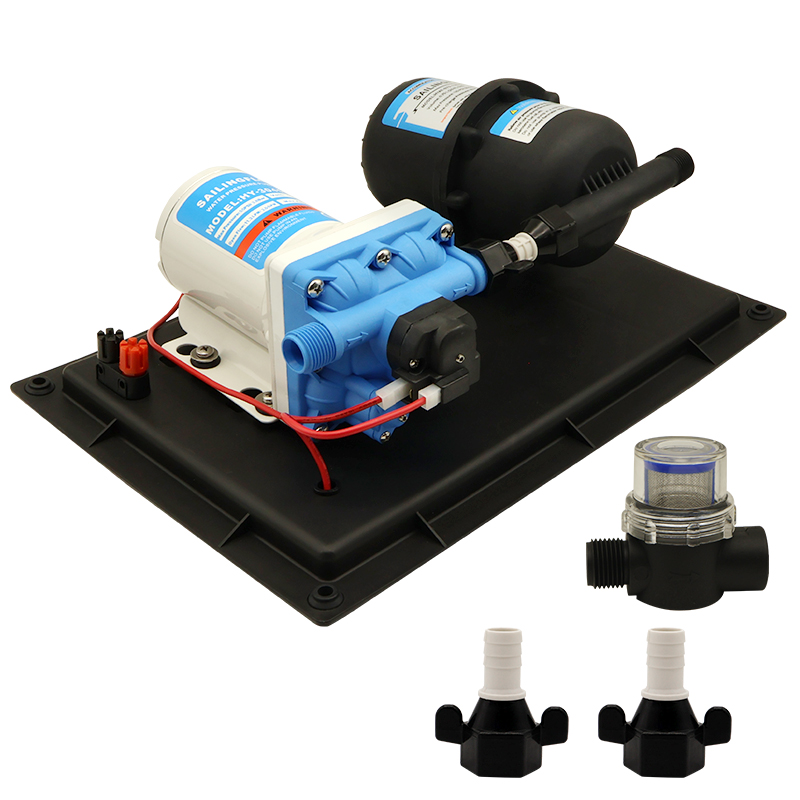

Kit Includes:

Powerful 3.0 GPM (11.3 LPM) Water Pressure Pump-HY-304551R
Compact 0.75 L Pre-Pressurized Accumulator Tank-HYAT-075-125-01
Inline Strainer for debris protection
Pre-wired quick-connect electrical system

Performance Specs:
Turn-On Pressure: 35psi / 2.4 bar
Shut-Off Pressure: 55psi / 3.8 bar
Tank Volume: 0.75 Liters

Simplify your water system installation without compromising performance or reliability.

Details Images

Type	4 Chamber Diaphragm
Port Size	1/2'' MNPT male thread
Liquid	140°F [60 °C] Max
Self-priming	6 feet (about 1.8m)
Max.Pressure	55psi
Run Dry	Yes (within 30 second)
Duty Protection:	Thermal Overload, fuse, Automatic Restart
Motor	Permanent Magnet, Intermittent

√ Universal Fit: Threaded connections with multiple fitting options for easy integration into any system.
√ Whisper-Quiet Operation: Low noise output—no louder than your air conditioner.

√ Built for Travel: Ideal for motorhomes, campervans, and boats.

√ Thermal Overload Protection: Automatically shuts off to prevent overheating and restarts when cooled.
√ Vibration Dampening: Semi-rigid rubber feet reduce noise from vibration.
√ Smart On-Demand Operation: Runs only when needed—efficient and convenient.

√ Run Dry Safe & Self-Priming: Designed to handle tough conditions without damage.

√ Built to Last: Continuous duty capability with an impressive 1-year warranty.

√ Certified Quality: Meets or exceeds RoHS, SGS, and CE standards.

Technical Data

Model	Tank Volume	Volt	Flow (LPM/GPM)	Pressure (PSI/bar)	Valve	Amp Draw(A)
HY-304551R	0.75L	12V	11.3/3.0	55/3.7	EPDM	7.5
HY-304552R	0.75L	24V	11.3/3.0	55/3.7	EPDM	4
HY-404551R	0.75L	12V	15.2/4.0	55/3.7	EPDM	8.5
HY-404552R	0.75L	24V	15.2/4.0	55/3.7	EPDM	5
HY-504551R	0.75L	12V	18.9/5.0	55/3.7	EPDM	15
HY-504552R	0.75L	24V	18.9/5.0	55/3.7	EPDM	7.5
