automatic bilge pumps for boats
Factory 1100GPH best small marine automatic bilge pump with float switch for boats
  • Product Origin:

    China
  • Brand:

    Singflo
  • Item No.:

    HYBP1-G1100-02
  • Shipping Port:

    Xiamen,NingBo,Shanghai,Shenzhen,QingDao etc.
  • Lead Time:

    7-20days
  • Payment:

    T/T, Payment, Western union, Money gram,Paypa
Inquire
  • Product Details

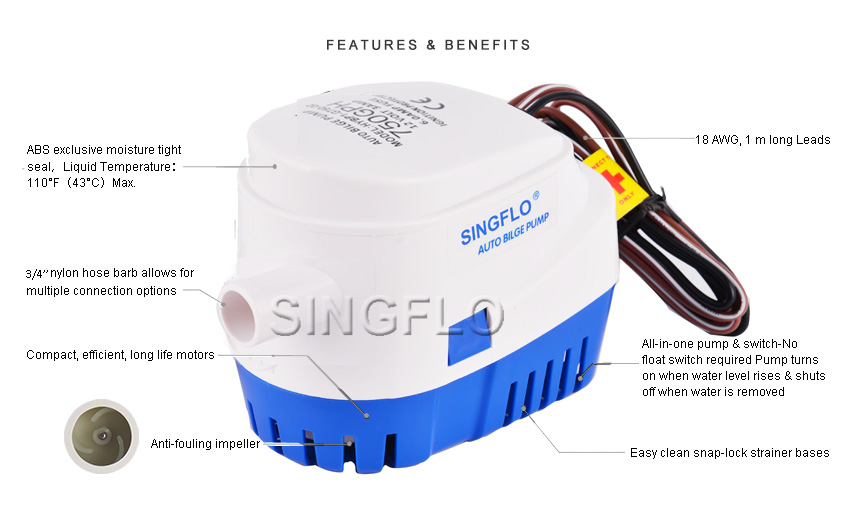

DESCRIPTION

*The submersible auto bilge pumps are equipped with built in electronic controlled reed sensor system to make fully automatic operation easy.

*No separate float switch is needed and relay loop design protect the pump against instant high currents.

*No power use until pump turns on when water rises.(Auto bilge pump)

*All (auto)bilge pumps are built with compact, rust and corrosion protected stainless steel shaft, high-impact durable and thermoplastic ABS plastic housing.

*Small size, high efficiency, low current to achieve a small size perfect combination of high flow.

*Totally submersible with anti airlock design and moisture tight seals.

*To all existing safety standard.

*Snap-lock strainer base for easy installation and removal and silent vibration free running.

*Connections: For 19mm (3/4") bore hose.

*Limited one year warranty

Automatic bilge pumps can be used with switch panel for manual override

Includes comprehensive user manual with installation instructions and wiring diagram.

Typically used in boat hulls/bilges Bait tanks, Ponds,Pools spas etc.


TECHNICAL DATA

Model Flow Rate Volts Current Head Wire Outlet Dia
HYBP1-G600-02 600GPH 12V 2.5A
2.5M 100CM 19MM
HYBP2-G600-02 600GPH 24V 1.5A 2.5M 100CM
19MM
HYBP1-G750-02 750GPH 12V 3.0A 3.0M 100CM 19MM
HYBP2-G750-02 750GPH 24V 1.6A 3.0M 100CM 19MM
HYBP1-G1100-02 1100GPH 12V 3.8A 5.0M 100CM 29MM
HYBP2-G1100-02 1100GPH 24V 2.0A 5.0M 100CM 29MM


Key Description Quantity Key Description Quantity
1 Pump Cover 1 9 Impeller Cover 1
2 Motor Bracket 1 10 Strainer 1
3 Motor 2 11 Rotro 1
4 Motor Oil Seal 1 12 Round Wearplate 1
5 Wearplate 1 13 Oil Seal 1
6 Switch Assembly 1 14 Float 1
7 Pump Housing 1 15 Knob 1
8 Impeller 1
