high flow water pump

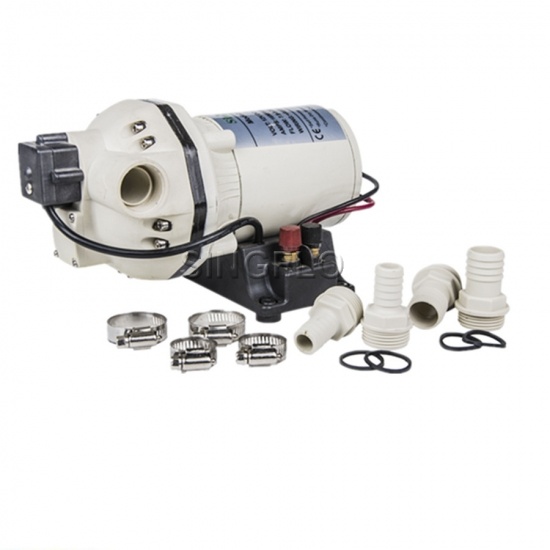

Factory 30-50LPM 12V/24V High Flow Electric Diaphragm pump
  • Product Origin:

    China
  • Brand:

    Singflo
  • Item No.:

    HV-30A
  • Shipping Port:

    Xiamen,NingBo,Shanghai,Shenzhen,QingDao etc.
  • Lead Time:

    7-20days
  • Payment:

    T/T, Payment, Western union, Money gram,Paypa
Inquire
  • Product Details

Features:
Permanent magnet and continuous duty
Built-in pressure switch automatically stats and stops pump when faucets is opened and closed
Self-priming so pump can be locate above water tank
Runs dry for extended periods of time without damage
Hold excellent motor keep stable temperature of pump

Specification:

Self Priming
More than 3 meters
Port Size

Hose tail connection 3/4''

Pressure Max.
40PSI(2.8bar)

Diaphragm Material

Viton
Check Value made Viton
Voltage

12v,24v,DC,115V,220V,230V AC

Power On/Off switch
Body Material (DC):

Polypropylene

Material (AC):

Aluminium

Liquid of applications:

Water, oil, Urea, Adblue

Technical Data:

Model Volts(DC/AC) Flow(LPM) Pressure Amps(A) Speed(RPM) N.W./G.W.(KGS)
HV-30A 12VDC 30-35 40PSI(2.8bar) 15 2800 5/5.5
HV-30B 24VDC 30-35 40PSI(2.8bar)
7.5 2800 5/5.5
HV-30S 115VAC 30 25PSI(2.8bar)
4 3400 6/6.5
HV-30M 230VAC 30 25PSI(2.8bar)
1.5 2900 6/6.5
HV-40S 115VAC 40 25PSI(2.8bar)
4.2 3400 6/6.5
HV-40M 230VAC 40 25PSI(2.8bar)
1.8 2900 6/6.5
HV-50S 115VAC 50 25PSI(2.8bar)
4.5 3400 6/6.5
HV-50M 230VAC 50 25PSI(2.8bar)
2 2900 6/6.5
