Electric Auto Water Pumps For Car Washer
Products
Magnetic Pump

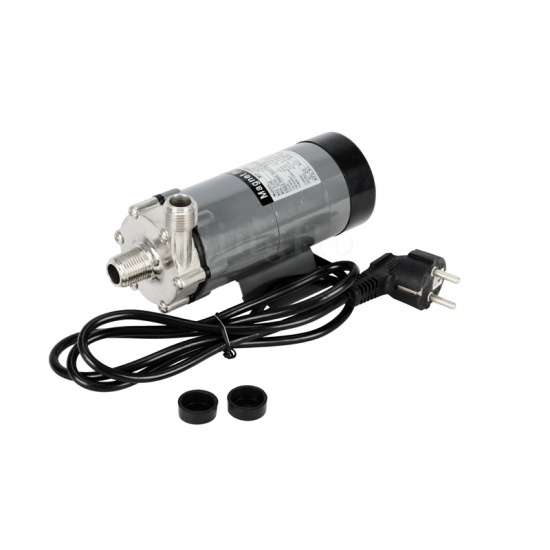

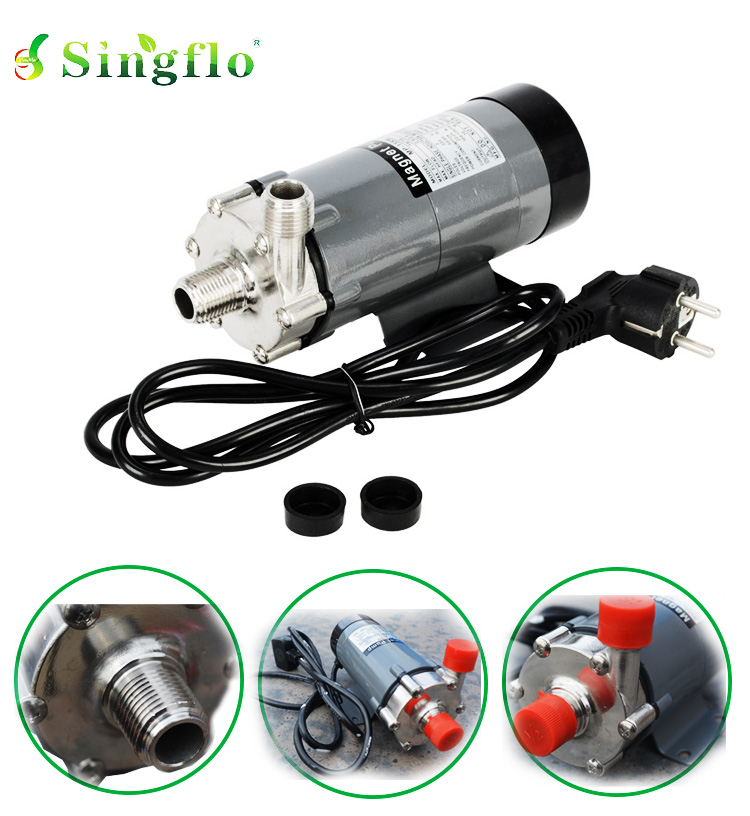

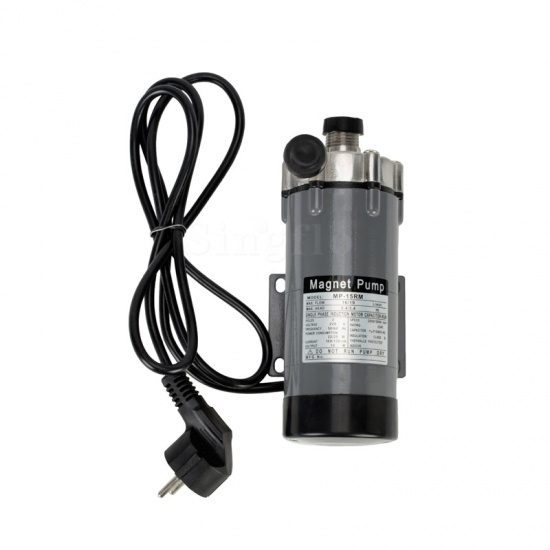

Factory 110V/240V AC MP-20RM Electric Magnetic Pump Magnet Pump
  • Product Origin:

    china
  • Brand:

    Singflo
  • Item No.:

    MP-20RM
  • Shipping Port:

    Xiamen,NingBo,Shanghai,Shenzhen,QingDao etc.
  • Lead Time:

    7-30 days
  • Payment:

    T/T, Payment, Western union, Money gram,Paypa
Inquire
  • Product Details

Electric Magnetic Pump Features:

Magnetic Pump MP-20RM

1/2”NPT thread

With Stainless Steel 304 Head

Food Grade High Temperature Resisting Magnetic Drive Pump

Heating Resisting 140 Celsius Degree (32℉-284℉)

Barb Ending are available

Max Capacity: 27/32L/min

Rated Capacity:3.1/4.3L/min

Max  Head :1.5/2.1 Meter

Rated Head:2.1Meter


Magnetic water pump structure:

1. Magnetic drive circulation pump is full-sealed pump,for motor connecting shaft

and impeller are separately equipped with magnetic materials,they attract each

other and coupled.

2. It is unnecessary to fit with traditional shaft seal and complete-ness sealed constitutive

water pump.Avoids defects of pollution after corrosion caused by liquid leakage,

and thatstill adopts special ceramics as shaft bearing,characterizing strong

resistance for abrasion and corrosion.

3. It's advanced performance and quality is the optimum liquid transport pump on

the industrial equipments.



Heating Resisting 120 Celsius Degree

Advanced performance and quality optimum liquid transport pump on the industrial and home equipments.

Shaft bearing adopt special ceramics material which make it characterize strong resistance for abrasion and corrosion.

Full-sealed pump,motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled.

Apply to :Beer Dispensing,Water Treatment,Pollution Controll,Chemical Industry,Phatmaccutical Industry.



Application

Widely used in chemical industry, medicine, construction, Environmental protect, irrigation works, power industry,Petroleum, fire control, food, printing, and color Photofinishing, etc.,


Magnetic drive motor pump data

Models Max. flow rate(50/60HZ) Rated flow rate(50/60HZ) Max head(50/60HZ) Rated head(M) Current(220v/240v) Out put(w) 50/60HZ
SpeedRPM)
MP-10RM 11/12LPM 5/8LPM 1.5/2.1M 1M 60/75mA 5 2600/3000
MP-15RM 16/19LPM 8/12LPM 2.7/3.4M 1.5M 110/120mA 10 2600/3000
MP-20RM 27/32LPM 17/22LPM 3.1/4.3M 2M 150mA 15 2600/3000
